Indian Bullet Spares Catalogue

Wheels

Front Hub - Front Brake - Front Mudguard

Rear Hub - Rear Brake - Rear Mudguard

Please Note: When ordering parts please quote: Part No. and number required, model, year and country type (Royal Enfield exports the following main country types: Indian, European and USA/Canada).

Differences between models are indicated.

Once you have decided on your requirements email us.

Front Hub

Key No. Part No. Description Qty. Bullet Bu. Mach 350 Bu. 500 Lightning T'bird Remarks
350 Dlx Mac Cam Elec 500 535 535ES
A1 143966 Front Wheel Assembly 1
170395 Front Wheel Assembly 1
560526 Front Wheel Assembly (For disc brake bikes) 1
A2 143967 Front Hub Assembly 1
A3 144293 Front Spindle Kit 1
A4 144295 Front Wheel Bearing Kit 1
1 124334 Nut 1
2 144571 Speedo hub drive Assembly 1
560524/A Speedo hub drive Assembly (For disc brake bikes) 1
3 110334 Collar, Speedo drive 1
4 560523/A Spacer (For disc brake bikes) 1
5 110293 Retainer 1
6 110292 Felt Washer 1
7 110970 Retainer 2
8 141109 Grease Seal 2
9 124316 Bearing 6203.2 ZR-C3 (for drum brake bikes) 2 Before July 2002
145552/A Bearing, Rubber Seal 6203 RS1-C3 (for drum brake bikes) 2 After July 2002
124316 Bearing 6203.2 ZR-C3 (for disc brake bikes) 2
10 141133 Wheel Rim WM 2-19 1
11 110349 Spoke Nipples 40
12 142176 Spokes, Outer 20
13 142175 Spokes, Inner 20
14 560502/C Spokes, Long (for disc brake bikes) 20
15 560519/C Spokes, Short (for disc brake bikes) 20
16 143969 Hub, Front brake 7" 1
560500 Hub (for disc brake bikes) 1
17 124333 Spindle 1
560520/B Spindle (for disc brake bikes) 1
18 142835 Plain washer (for disc brake bikes) 1
19 560525/A Hex Nut with Nylock Insert (for disc brake bikes) 1
20 560521/A Spacer Assy (for disc brake bikes) 1
21 560522/A Spacer, Disc Side (for disc brake bikes) 1
22 560511/B Disc, Front (for disc brake bikes) 1
23 560530/B Socket Button Head Cap Screw (for disc brake bikes) 6
24 560504 Adaptor Plate (for disc brake bikes) 1
25 560546/A Hex Flange Bolt M8 x 25 (for disc brake bikes) 6

[top]

Front Brake

Key No. Part No. Description Qty. Bullet Bu. Mach 350 Bu. 500 Lightning T'bird Remarks
350 Dlx Mac Cam Elec 500 535 535ES
A1 144705 Cover PLate Assembly 7" 1
A2 143785 Cover PLate Assembly 7" 1
1 143971 Brake Shoe 2
2 140374 Spring - Shoe Return 2
3 142855 Operating Cam 2
142855 Operating Cam 1
4 143037 Operating Cam (for wear indicator) 1
5 140378 Felt washer 1
6 142239 Distance Collar 1
7 143970 Cover Plate 1
8 140388 Nut 1
9 142862 Link Rod 1
10 142864 Trunion (LH Thread) 1
11 142861 Nut Link Rod (LH Thread) 1
12 142858 Operating Lever, Short 1
13 143407 Washer 2
14 141700 Nut 2
141700 Nut 3
15 142856 Operating Lever, Long 1
16 142863 Trunion (RH Thread) 1
17 142860 Nut Link Rod (RH Thread) 1
18 143038 Wear Indicator 1

[top]

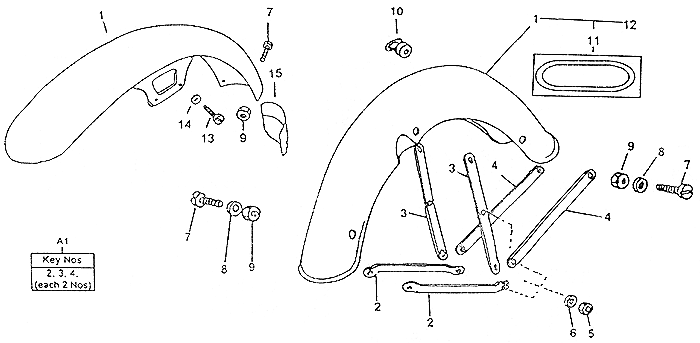

Front Mudguard

Key No. Part No. Description Qty. Bullet Bu. Mach 350 Bu. 500 Lightning T'bird Remarks
350 Dlx Mac Cam Elec 500 535 535ES
A1 597097 Front Mudguard Stay Kit, Black 1
597104 Front Mudguard Stay Kit, Plated 1
597163 Front Mudguard Stay Kit, Plated 1
597102 Front Mudguard Stay Kit, Athena Gray 1
1 801046 Front Mudguard, Black 1
143098 Front Mudguard, Plated 1
111263 Front Mudguard, Plated 1
560544 Front Mudguard, Plated (for disc brake bikes) 1
806007 Front Mudguard, Athena Gray 1
836049 Front Mudguard, Riv. Red 1
839018 Front Mudguard, Purplish Blue 1
844001 Front Mudguard, Ocean Black 1
838041 Front Mudguard, Metallic silver 2
2 801043 Stay Front, Black 2
112183 Stay Front, Plated 2
111264 Stay Front, Plated 2
806020 Stay Front, Athena Gray 2
3 801044 Stay Centre, Black 1
112185 Stay Centre, Plated 2
111265 Stay Centre, Plated 2
806021 Stay Centre, Athena Gray 1
4 801045 Stay Back, Black 1
112187 Stay Back, Plated 2
111266 Stay Back, Plated 2
806022 Stay Back, Athena Gray 1
5 140191 Hex Nut 6
144863/A Domed Cap Nut 6
6 140147 Lock Washer 6
140147 Lock Washer 2
140147 Lock Washer (for disc brake bikes) 2
7 153355 Screw 6
140401 Screw 6
142894 Screw 6
142894 Screw 2
142894 Screw (for disc brake bikes) 2
8 140129 Lock Washer 6
9 140126 Hex Nut 6
141306 Hex Nut with Nylock Insert 6
141306 Hex Nut with Nylock Insert 2
141306 Hex Nut with Nylock Insert (for disc brake bikes) 2
10 142532 Cable Guide 1
142532 Cable Guide 2
11 170483 Sticker, Black/Red 1
170484 Sticker, Purple/Gray 1
170485 Sticker, Burgundy/Sandalwood 1
170498 Sticker, Gray/Black 1
12 801078 Front Mudguard with Stickers, Black/Red 1
807004 Front Mudguard with Stickers, Purple/Gray 1
808004 Front Mudguard with Stickers, Cognac/S. wood 1
809004 Front Mudguard with Stickers, Burgundy/S. wood 1
810004 Front Mudguard with Stickers, Gray/Black 1
836011 Front Mudguard with Stickers, Riv. Red/S. wood 1
837011 Front Mudguard with Stickers, Gold/Black 1
13 142258 Hex Screw M8 x 16 4
142258 Hex Screw M8 x 16 (for disc brake bikes) 4
14 143270 Lock Washer 4
143270 Lock Washer (for disc brake bikes) 4
15 521069/A Front Mudguard Extension 1
521069/A Front Mudguard Extension (for disc brake bikes) 1

[top]

Rear Hub

Key No. Part No. Description Qty. Bullet Bu. Mach 350 Bu. 500 Lightning T'bird Remarks
350 Dlx Mac Cam Elec 500 535 535ES
A1 141101 Wheel Assembly, Rear 1
A2 142347 Hub Assembly, Rear 1
A3 144296 Bearing Kit, Rear Wheel 1
1 141133 Wheel Rim WM 2-19 1
2 141121 Distance Piece Rear Hub 1
3 141119 Distance Collar Rear Hub 1
4 124539 Screw, Rear Hub Cover 2
5 804005 Cover, Rear Hub 1
170107 Cover, Rear Hub 1
6 141109 Grease Seal 1
7 124316 Bearing 6203.2 ZR-C3 2 Before July 2002
145552/A Bearing, Rubber seal 6203 RS1-C3 2 After July 2002
8 141105 Spacer Assembly 1
9 141110 'O' Ring 1
10 804006 Hub Rear 1
11 141135 Spokes, Inner 20
12 141136 Spokes, Outer 20
13 110349 Nipple 40
14 144471 Cush Rubber 4
15 801041 Sprocket Drum 1
16 141115 Distance Collar 1
17 141113 Grease Seal 1
18 141112 Bearing 6005 C3 1 Before July 2002
145553 Bearing, Rubber seal 6203 RS2-CN 1 After July 2002
19 144387 Adjuster RH 1

[top]

Rear Brake

Key No. Part No. Description Qty. Bullet Bu. Mach 350 Bu. 500 Lightning T'bird Remarks
350 Dlx Mac Cam Elec 500 535 535ES
1 801042 Cover Plate, Black 1
170104 Cover Plate, Plated 1
2 110283 Pin Anchor 1
3 153654 Operating Cam 1
143042 Operating Cam (for wear indicator) 1
4 110284 Lock Nut 1
5 110366 Washer 1
6 140380 Nut, Anchor Pin 1
7 801225 Cam Bush 1
8 110308 Spring, Brake Lever Return 1 Before May 1998
801039 Spring, Brake Lever Return 1 After May 1998
9 110287 Lever Operating Cam 1
143139 Lever Operating Cam 1
10 140376 Washer 1
140376 Washer 2
11 140384 Nut 1
140384 Nut 2
12 141130 Distance Collar 1
13 144386 Adjuster LH 1
14 141127 Nut, Spindle Short 1
15 141128 Castle Nut 1
16 141129 Split Pin 1
17 110282 Screw 1 Before April 2001
145089/B Screw 1 After April 2001
18 110286 Screw 1 Before April 2001
145090 Screw 1 After April 2001
19 140369 Nut 2
20 124313 Spring, Brake Shoe Return 2
21 141108 Spindle, Rear Hub 1
22 141114 Spindle, Short 1
23 144570 Brake Shoe Assembly 2
24 143040 Plate, Wear Indicator 1
25 143041 Wear Indicator 1

[top]

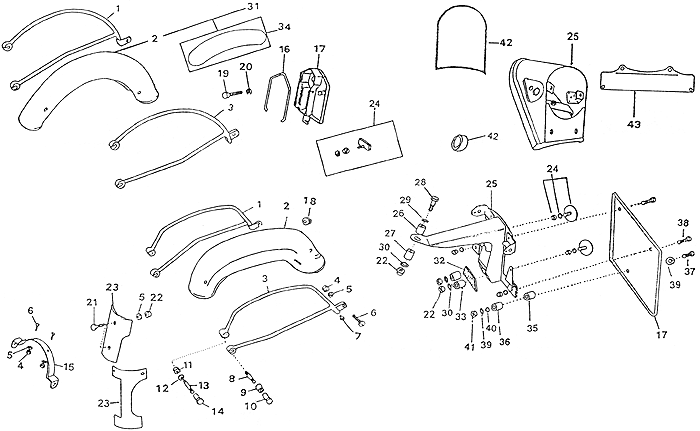

Rear Mudguard

Key No. Part No. Description Qty. Bullet Bu. Mach 350 Bu. 500 Lightning T'bird Remarks
350 Dlx Mac Cam Elec 500 535 535ES
1 801047 Mudguard Carrier RH, Black 1
802007 Mudguard Carrier RH, Red 1
803007 Mudguard Carrier RH, Peacock Blue 1
801063 Mudguard Carrier RH, Black 1
801079 Mudguard Carrier RH, Black 1
836056 Mudguard Carrier RH, Rivera Red 1
839025 Mudguard Carrier RH, Purplish Blue 1
844008 Mudguard Carrier RH, Ocean Black 1
838042 Mudguard Carrier RH, Metallic Silver 1
2 801049 Mudguard Rear, Black 1
141773 Mudguard Rear, Plated 1
142876 Mudguard Rear, Plated 1
806011 Mudguard Rear, Gray 1
836050 Mudguard Rear, Rivera Red 1
839019 Mudguard Rear, Purplish Blue 1
844002 Mudguard Rear, Ocean Black 1
838044 Mudguard Rear, Metallic Silver 1
3 801048 Mudguard Carrier LH, Black 1
802008 Mudguard Carrier LH, Red 1
803008 Mudguard Carrier LH, Peacock Blue 1
801064 Mudguard Carrier LH, Black 1
801080 Mudguard Carrier LH, Black 1
836005 Mudguard Carrier LH, Rivera Red 1
839024 Mudguard Carrier LH, Purplish Blue 1
844007 Mudguard Carrier LH, Ocean Black 1
838043 Mudguard Carrier LH, Metallic Silver 1
4 140126 Hex Nut 4
141306 Hex Nut with Nylock Insert 4
5 140129 Lock Washer 6
140129 Lock Washer 4
6 153355 Screw 4
142894 Screw 4
7 110163 Plug 2
8 110694 Stud 2
9 110695 Distance Piece 2
10 110353 Nut 2
11 140302 Nut 2
12 140293 Washer 2
13 110351 Stud 2
170249 Stud 2
14 140402 Nut 2
15 801050 Bridge Plate 1
801065 Bridge Plate 1
16 141844 Beading - Rear Number Plate 1
17 845002 Number Plate, Rear 1
845003 Number Plate, Rear 1
18 110161 Grommet 1
170242 Grommet 1
19 142761 Screw 1
20 140147 Lock Washer 1
21 142274 Screw 2
22 141060 Nut 2
141060 Nut 5
23 801051 Mudguard, Front Extension 1
801287 Piece Mudguard 1
24 143275 Reflector 1
170158 Reflector 2
25 170506 Bracket, Tail Lamp 1
521060/A Bracket, Tail Lamp 1
26 170144 Grommet 1
27 170148 Spacer 1
28 143498 Screw 3
29 141061 Washer 3
30 142603 Lock Washer 3
31 801081 Mudguard Rear with Sticker, Black/Red 1
807005 Mudguard Rear with Sticker, Purple/Gray 1
808005 Mudguard Rear with Sticker, Cognac/S. wood 1
809005 Mudguard Rear with Sticker, Burgundy/S. wood 1
810005 Mudguard Rear with Sticker, Gray/Black 1
836012 Mudguard Rear with Sticker, Red/S. wood 1
837012 Mudguard Rear with Sticker, California Gold/Black 1
32 170351 Pad Rubber 1
33 170146 Spacer 2
34 143257 Sticker 1
170480 Sticker, Black/Red & Cognac/Sandalwood 1
170481 Sticker, Purple/Gray 1
170482 Sticker, Burgundy/S. wood 1
170496 Sticker, Gray/Black 1
35 170145 Grommet 1
36 170357 Spacer 1
37 142095 Screw 1
38 124539 Screw 2
39 142023 Washer 2
40 142119 Lock Washer 3
41 141862 Nut 4
42 521111/A Beading 1
43 801289 Bracket, Number Plate 1
