Indian Bullet Spares Catalogue - Silencer & Exhaust, Distributor, Carburetor
When ordering parts please quote: Part No. and number required, model, year and country type (Royal Enfield exports the following main country types: Indian, European and USA/Canada). Differences between models are indicated.
The minimum mail order amount ₹4000/$150/€100. If you have any enquiries regarding parts email us.
Silencer and Exhaust Pipe - Distributor - CDI System - Carburetor - Carburetor A350 - C V Carburetor

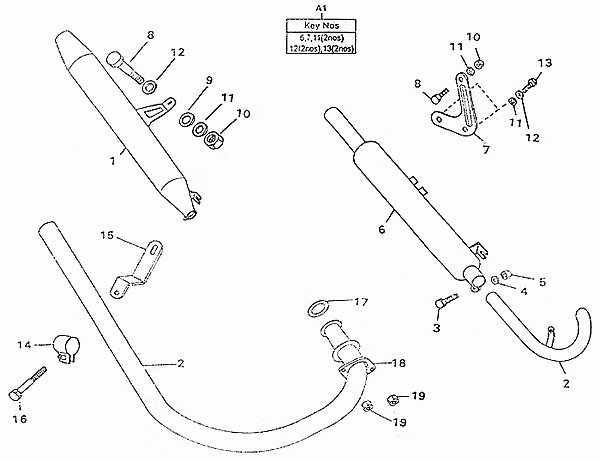

Silencer and Exhaust Pipe
| Key No. | Part No. | Description | Qty. | Bullet | Mach 350 | 500 | Lightning | T'bird | Remarks | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 350 | Dlx | Mac | Cam | Elec | 500 | 535 | 535ES | ||||||||
| A1 | 112162 | Silencer assy with bracket | 1 | • | • | • | • | • | Before Nov 2001 | ||||||
| 112101 | Silencer assy with bracket | 1 | • | After Nov 2001 | |||||||||||
| 142901 | Silencer assy with bracket | 1 | • | • | • | • | Before Nov 2001 | ||||||||
| 145434/A | Silencer assy with bracket | 1 | • | • | • | • | • | • | • | • | • | • | After Nov 2001 | ||
| 1 | 521084/C | Silencer assy | 1 | • | |||||||||||
| 2 | 144123/A | Exhaust Pipe | 1 | • | • | • | • | • | |||||||
| 145150 | Exhaust Pipe | 1 | • | • | • | • | |||||||||
| 521098/A | Exhaust Pipe | 1 | • | ||||||||||||
| 521137/A | Exhaust Pipe | 1 | • | ||||||||||||
| 3 | 141044 | Bolt | 1 | • | • | • | • | • | • | • | • | • | • | • | |
| 4 | 141061 | Washer | 1 | • | • | • | • | • | • | • | • | • | • | • | |
| 5 | 141060 | Nut | 1 | • | • | • | • | • | • | • | • | • | • | • | |
| 6 | 112163 | Silencer, Short | 1 | • | • | • | • | • | Before Nov 2001 | ||||||
| 144192 | Silencer, Long | 1 | • | After Nov 2001 | |||||||||||
| 144193 | Silencer, Long | 1 | • | • | • | • | • | • | • | • | • | • | Before Nov 2001 | ||
| 145435/C | Silencer, Long | 1 | • | • | • | • | • | • | • | • | • | • | After Nov 2001 | ||
| 7 | 112165 | Bracket | 1 | • | • | • | • | • | • | • | • | • | • | ||
| 8 | 142258 | Bolt | 1 | • | • | • | • | • | • | • | • | • | • | ||
| 143659 | Hex Screw M8 x30 | 1 | • | ||||||||||||
| 9 | 521151/A | Spacer | 1 | • | |||||||||||
| 10 | 141051 | Nut | 1 | • | • | • | • | • | • | • | • | • | • | ||
| 142182 | Nylock Nut | 1 | • | ||||||||||||
| 11 | 140147 | Washer - Shake proof | 3 | • | • | • | • | • | • | • | • | • | • | ||
| 140147 | Washer - Shake proof | 1 | • | ||||||||||||
| 12 | 140080 | Plain Washer | 2 | • | • | • | • | • | • | • | • | • | • | ||
| 140080 | Plain Washer | 1 | • | ||||||||||||
| 13 | 111715 | Bolt | 2 | • | • | • | • | • | • | • | • | • | • | ||
| 14 | 500805 | Bracket | 1 | • | Before Nov 2001 | ||||||||||
| 15 | 500806 | Bracket | 1 | • | Before Nov 2001 | ||||||||||
| 16 | 111914 | Bolt | 1 | • | Before Nov 2001 | ||||||||||
| 17 | 500804 | Gasket Ring, Exhaust | 1 | • | • | ||||||||||
| 18 | 500802 | Flange, Exhaust | 1 | • | • | ||||||||||
| 19 | 500803 | Nut | 1 | • | • | ||||||||||

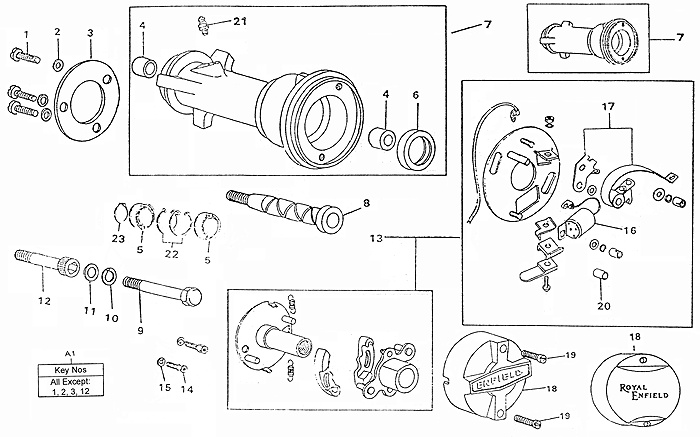

Distributor
| Key No. | Part No. | Description | Qty. | Bullet | Mach 350 | 500 | Lightning | T'bird | Remarks | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 350 | Dlx | Mac | Cam | Elec | 500 | 535 | 535ES | ||||||||
| A1 | 144202 | Distributor Assembly | 1 | • | • | • | • | ||||||||
| 144478 | Distributor Assembly | 1 | • | • | • | • | |||||||||
| 1 | 144913 | Screw | 3 | • | • | • | • | • | • | • | • | ||||
| 2 | 140129 | Washer | 3 | • | • | • | • | • | • | • | • | ||||
| 3 | 144623 | Gasket Distributor Flange | 1 | • | • | • | • | • | • | • | • | ||||
| 4 | 143630 | Bush - Contact Breaker Shaft | 2 | • | • | • | • | ||||||||
| 5 | 144481 | Bearing - Contact breaker Shaft | 2 | • | • | • | • | ||||||||
| 6 | 150013 | Oil Seal - Contact breaker shaft | 1 | • | • | • | • | ||||||||
| 144483 | Oil Seal - Contact breaker shaft | 1 | • | • | • | • | |||||||||
| 7 | 143872 | Distributor Body Assembly | 1 | • | • | • | • | ||||||||
| 144479 | Distributor Body | 1 | • | • | • | • | |||||||||
| 8 | 141988 | Shaft - Contact Breaker | 1 | • | • | • | • | ||||||||
| 144480 | Shaft - Contact Breaker | 1 | • | • | • | • | |||||||||
| 9 | 141462 | Bolt - Cam Assembly | 1 | • | • | • | • | • | • | • | • | ||||
| 10 | 140129 | Washer - Shake proof | 1 | • | • | • | • | • | • | • | • | ||||
| 11 | 140083 | Washer | 1 | • | • | • | • | • | • | • | • | ||||
| 12 | 142598 | Allen Screw | 1 | • | • | • | • | • | • | • | • | ||||
| 13 | 141810 | C.B. Plate, Cam & Governor Ass | 1 | • | • | • | • | ||||||||
| 144146 | C.B. Plate, Cam & Governor Ass | 1 | • | • | • | • | |||||||||
| 14 | 144911/A | Screw | 2 | • | • | • | • | • | • | • | • | ||||
| 15 | 142119 | Single coil lock washer | 2 | • | • | • | • | • | • | • | • | ||||
| 16 | 141812 | Condenser | 1 | • | • | • | • | • | • | • | • | ||||
| 17 | 140954 | C.B. Point Set | 1 | • | • | • | • | • | • | • | • | ||||
| 18 | 142476/4 | Cover - Contact Breaker housing | 1 | • | • | • | • | • | • | • | • | Before Sept 2002 | |||
| 142476/A | Cover - Contact Breaker housing | 1 | • | • | • | • | • | • | • | • | After Sept 2002 | ||||
| 19 | 142121/A | Screw | 2 | • | • | • | • | • | • | • | • | ||||
| 20 | 140714 | Snap on Connector | 1 | • | • | • | • | • | • | • | • | ||||
| 21 | 113049 | Grease Nipple | 1 | • | • | • | • | • | • | • | • | ||||
| 22 | 143909 | Circlip | 2 | • | • | • | • | ||||||||
| 23 | 144482 | Circlip | 2 | • | • | • | • | ||||||||

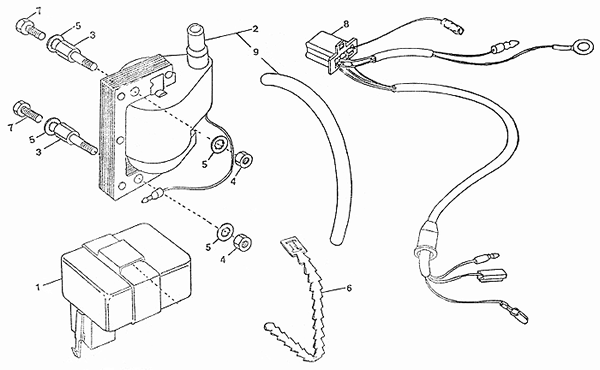

CDI System
| Key No. | Part No. | Description | Qty. | Bullet | Mach 350 | 500 | Lightning | T'bird | Remarks | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 350 | Dlx | Mac | Cam | Elec | 500 | 535 | 535ES | ||||||||
| 1 | 145439/A | CDI with Rubber Holder | 1 | • | |||||||||||
| 500910 | CDI with Rubber Holder | 1 | • | • | |||||||||||
| 2 | 144032 | Ignition Coil with HT Cable | 1 | • | • | • | |||||||||
| 3 | 500912 | Nut Pillar | 2 | • | • | • | |||||||||
| 4 | 141060 | Nut | 2 | • | • | • | |||||||||
| 5 | 140129 | Washer | 4 | • | • | • | |||||||||
| 6 | 141162 | Strap | 1 | • | • | • | |||||||||
| 7 | 141093 | Screw | 2 | • | • | • | |||||||||
| 8 | 500915 | CDI Wiring Harness | 1 | • | • | • | |||||||||
| 9 | 140033 | HT Cable | 1 | • | • | • | |||||||||

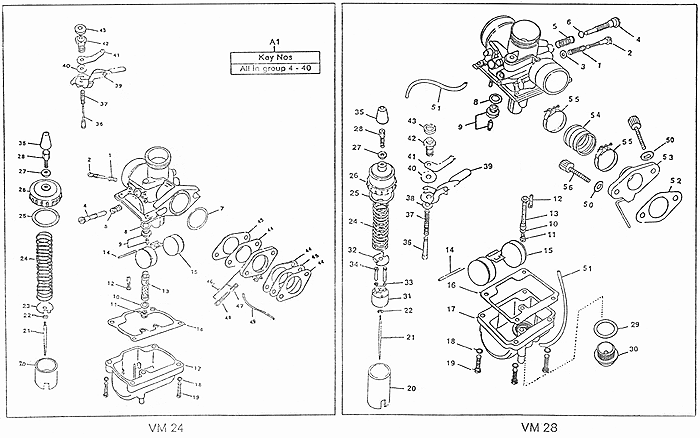

Carburetor
| Key No. | Part No. | Description | Qty. | Bullet | Mach 350 | 500 | Lightning | T'bird | Remarks | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 350 | Dlx | Mac | Cam | Elec | 500 | 535 | 535ES | ||||||||
| A1 | 144732 | Carburetor - Mikcarb VM 24 | 1 | • | • | • | • | • | |||||||
| 144135 | Carburetor - Mikcarb VM 28 | 1 | • | • | |||||||||||
| 144136 | Carburetor - Mikcarb VM 28 | 1 | • | • | |||||||||||
| 1 | 141947 | Spring - Air Screw | 1 | • | • | • | • | • | |||||||
| 2 | 141951 | Air Screw | 1 | • | • | • | • | • | |||||||
| 142970 | Air Screw | 1 | • | • | • | • | |||||||||
| 3 | 142971 | 'O' Ring, Air Screw | 1 | • | • | • | • | ||||||||
| 4 | 141598 | Screw - Throttle Adjuster | 1 | • | • | • | • | • | |||||||
| 142972 | Screw - Throttle Adjuster | 1 | • | • | • | • | |||||||||
| 5 | 141952 | Spring - Throttle Adjuster | 1 | • | • | • | • | • | |||||||
| 142973 | Spring - Throttle Adjuster | 1 | • | • | • | • | |||||||||
| 6 | 141946 | 'O' Ring, Throttle Screw | 1 | • | • | • | • | • | |||||||
| 7 | 142981 | 'O' Ring | 1 | • | • | • | • | ||||||||
| 8 | 141967 | Washer - Valve Seat Packing | 1 | • | • | • | • | • | • | • | • | • | |||
| 9 | 141969 | Needle Valve Ass. | 1 | • | • | • | • | • | |||||||
| 142984 | Needle Valve Ass. | 1 | • | • | • | • | |||||||||
| 10 | 141966 | Washer, Main Jet | 1 | • | • | • | • | • | • | • | • | • | |||
| 11 | 141948 | Main Jet 90 | 1 | • | • | • | • | • | |||||||
| 112180 | Main Jet 110 | 1 | • | • | |||||||||||
| 144335 | Main Jet 117.5 | 1 | • | • | |||||||||||
| 12 | 141977 | Pilot Jet | 1 | • | • | • | • | • | • | • | • | • | |||
| 13 | 141978 | Needle Jet | 1 | • | • | • | • | • | |||||||
| 142992 | Needle Jet | 1 | • | • | • | • | |||||||||
| 14 | 141950 | Hinge Pin | 1 | • | • | • | • | • | • | • | • | • | |||
| 15 | 141970 | Float Assembly | 1 | • | • | • | • | • | |||||||
| 142996 | Float Assembly | 1 | • | • | • | • | |||||||||
| 16 | 141953 | Gasket | 1 | • | • | • | • | • | |||||||
| 142974 | Float Chamber Gasket | 1 | • | • | • | • | |||||||||
| 17 | 141968 | Float Chamber Body | 1 | • | • | • | • | • | |||||||
| 142995 | Float Chamber Body | 1 | • | • | • | • | |||||||||
| 18 | 141963 | Spring Washer | 4 | • | • | • | • | • | • | • | • | • | |||
| 19 | 141964 | Screw - Float Chamber | 4 | • | • | • | • | • | • | • | • | • | |||
| 20 | 141957 | Throttle Valve | 1 | • | • | • | • | • | |||||||
| 142977 | Throttle Valve | 1 | • | • | |||||||||||
| 144152 | Throttle Valve | 1 | • | • | |||||||||||
| 21 | 141945 | Jet Needle | 1 | • | • | • | • | • | • | • | • | • | |||
| 22 | 141965 | Spring Clip | 1 | • | • | • | • | • | • | • | • | • | |||
| 23 | 141959 | Spring Plate | 1 | • | • | • | • | • | |||||||
| 24 | 141954 | Spring - Throttle Valve | 1 | • | • | • | • | • | |||||||
| 142975 | Spring - Throttle Valve | 1 | • | • | • | • | |||||||||
| 25 | 141974 | Washer Rubber - Mixing Chamber Cap | 1 | • | • | • | • | • | |||||||
| 142986 | Washer Rubber - Mixing Chamber Cap | 1 | • | • | • | • | |||||||||
| 26 | 141973 | Mixing Chamber Cap | 1 | • | • | • | • | • | |||||||
| 142994 | Mixing Chamber Cap | 1 | • | • | • | • | |||||||||
| 27 | 141975 | Lock Nut - Throttle Cable Adjuster | 1 | • | • | • | • | • | • | • | • | • | |||
| 28 | 141976 | Adjuster - Throttle Cable | 1 | • | • | • | • | • | • | • | • | • | |||
| 29 | 142991 | Washer Fibre | 1 | • | • | • | • | ||||||||
| 30 | 142990 | Plug Drain | 1 | • | • | • | • | ||||||||
| 31 | 142978 | Connector Block | 1 | • | • | • | • | ||||||||
| 32 | 142973 | Plate Block | 1 | • | • | • | • | ||||||||
| 33 | 142983 | Washer | 2 | • | • | • | • | ||||||||
| 34 | 142980 | Screw - Throttle Valve | 2 | • | • | • | • | ||||||||
| 35 | 141956 | Cap Rubber | 1 | • | • | • | • | • | • | • | • | • | |||
| 36 | 141972 | Plunger Assembly | 1 | • | • | • | • | • | |||||||
| 142989 | Plunger Assembly | 1 | • | • | • | • | |||||||||
| 37 | 141960 | Spring | 1 | • | • | • | • | • | |||||||
| 142988 | Spring | 1 | • | • | • | • | |||||||||
| 38 | 142979 | 'O' Ring | 1 | • | • | • | • | ||||||||
| 39 | 141971 | Lever Ass - Starter | 1 | • | • | • | • | • | |||||||
| 142985 | Lever Ass - Starter | 1 | • | • | • | • | |||||||||
| 40 | 141949 | Washer | 1 | • | • | • | • | • | • | • | • | • | |||
| 41 | 141955 | Spring Plate | 1 | • | • | • | • | • | • | • | • | • | |||
| 42 | 141962 | Guide Holder | 1 | • | • | • | • | • | |||||||
| 142987 | Guide Holder | 1 | • | • | • | • | |||||||||
| 43 | 141961 | Cap Rubber | 1 | • | • | • | • | • | • | • | • | • | |||
| 44 | 144625 | Gasket, Carburetor Flange | 3 | • | • | • | • | • | |||||||
| 45 | 141515 | Spacer | 2 | • | • | • | • | • | |||||||
| 46 | 143287 | Flange Assembly | 1 | • | • | • | • | • | |||||||
| 47 | 112096 | Spring, Auxiliary Air Screw | 1 | • | • | • | • | • | |||||||
| 48 | 112095 | Screw, Auxiliary Air | 1 | • | • | • | • | • | |||||||
| 49 | 141831 | Tube, Flexible | 1 | • | • | • | • | • | |||||||
| 50 | 140147 | Washer - Metal | 2 | • | • | • | • | ||||||||
| 51 | 142982 | Tube - Air Vent | 2 | • | • | • | • | ||||||||
| 52 | 142471 | Gasket | 1 | • | • | • | • | ||||||||
| 53 | 144083 | Carburetor Flange Ass | 1 | • | • | • | • | ||||||||
| 54 | 143143 | Hose, Carburetor | 1 | • | • | • | • | ||||||||
| 55 | 143144 | Clip - Hose | 2 | • | • | • | • | ||||||||
| 56 | 143146 | Allen Screw | 2 | • | • | • | • | ||||||||

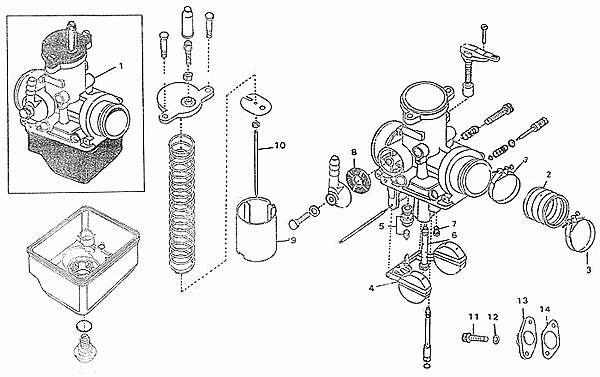

Carburetor A350
| Key No. | Part No. | Description | Qty. | Bullet | Mach 350 | 500 | Lightning | T'bird | Remarks | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 350 | Dlx | Mac | Cam | Elec | 500 | 535 | 535ES | ||||||||
| 1 | 500700 | Carburetor Assembly | 1 | • | Before June 2002 | ||||||||||
| 2 | 500699 | Hose Carburetor to Engine | 1 | • | After June 2002 | ||||||||||
| 500822/A | Hose Carburetor to Engine | 1 | • | Before June 2002 | |||||||||||
| 3 | 500711 | Clip Hose | 2 | • | After June 2002 | ||||||||||
| 143144/2 | Clip Hose | 2 | • | ||||||||||||
| 4 | 500769 | Float Assembly | 1 | • | |||||||||||
| 5 | 500771 | Needle Valve Set | 1 | • | |||||||||||
| 6 | 500772 | Needle Jet | 1 | • | |||||||||||
| 7 | 500775 | Pilot Jet | 1 | • | |||||||||||
| 8 | 500778 | Strainer | 1 | • | |||||||||||
| 9 | 500785 | Throttle Valve | 1 | • | |||||||||||
| 10 | 500786 | Jet Needle | 1 | • | |||||||||||
| 11 | 500355 | Hex Socket Head Screw M6 x 16 | 2 | • | After June 2002 | ||||||||||
| 12 | 144636 | Sealing Washer | 2 | • | After June 2002 | ||||||||||
| 13 | 500880/A | Flange | 1 | • | After June 2002 | ||||||||||
| 14 | 500824/A | Gasket | 1 | • | After June 2002 | ||||||||||

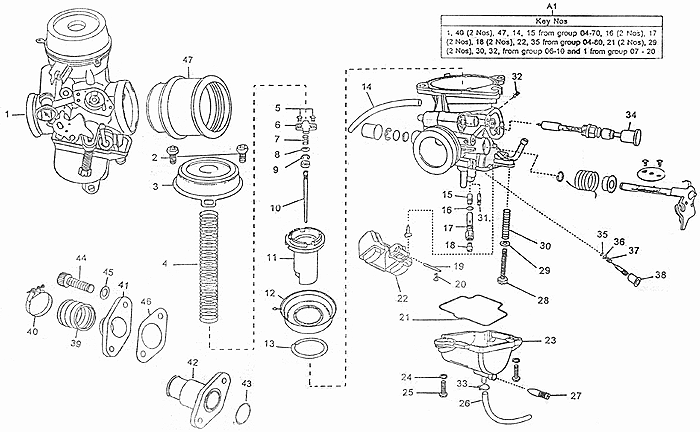

C V Carburetor
| Key No. | Part No. | Description | Qty. | Bullet | Mach 350 | 500 | Lightning | T'bird | Remarks | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 350 | Dlx | Mac | Cam | Elec | 500 | 535 | 535ES | ||||||||
| A1 | 597272 | Carburetor Kit | 1 | • | |||||||||||
| 1 | 500820 | Carburetor Assembly | 1 | • | |||||||||||
| 2 | 500854 | Top Cover Fixing Screw | 2 | • | |||||||||||
| 3 | 500831 | Diaphragm Top Cover | 1 | • | |||||||||||
| 4 | 500833 | Piston Valve Spring | 2 | • | |||||||||||
| 5 | 500848 | Jet Needle Plate Fixing Screw | 1 | • | |||||||||||
| 6 | 500836 | Jet Needle Fixing Plate | 1 | • | |||||||||||
| 7 | 500837 | Jet Needle Retainer Spring | 1 | • | |||||||||||
| 8 | 500839 | Jet Needle Washer | 1 | • | |||||||||||
| 9 | 500838 | Jet Needle E-Ring | 1 | • | |||||||||||
| 10 | 500864 | Jet Needle | 1 | • | |||||||||||
| 11 | 500832 | Piston Valve Assembly | 1 | • | |||||||||||
| 12 | 500835 | Diaphragm | 2 | • | |||||||||||
| 13 | 500834 | Diaphragm Retainer Ring | 2 | • | |||||||||||
| 14 | 500861 | Air Vent Hose | 1 | • | |||||||||||
| 15 | 500865 | Needle Jet | 1 | • | |||||||||||
| 16 | 500845 | O Ring | 1 | • | |||||||||||
| 17 | 500844 | Main Jet Holder | 1 | • | |||||||||||
| 18 | 500863 | Main Jet | 1 | • | |||||||||||
| 19 | 500846 | Float Pin | 1 | • | |||||||||||
| 20 | 500847 | Float Pin Fixing Screw | 1 | • | |||||||||||
| 21 | 500841 | O Ring, Float Chamber Cover | 1 | • | |||||||||||
| 22 | 500843 | Float Assembly | 1 | • | |||||||||||
| 23 | 500860 | Float Body Assembly | 1 | • | |||||||||||
| 24 | 500842 | Washer | 2 | • | |||||||||||
| 25 | 500842 | Screw | 2 | • | |||||||||||
| 26 | 500853 | Hose Drain | 1 | • | |||||||||||
| 27 | 500871 | Screw | 1 | • | |||||||||||
| 28 | 500857 | Idle Adjuster Screw | 1 | • | |||||||||||
| 29 | 500856 | Packing, Idle Adjuster Screw | 1 | • | |||||||||||
| 30 | 500855 | Spring, Idle Adjuster Screw | 1 | • | |||||||||||
| 31 | 500866 | Pilot Jet | 1 | • | |||||||||||
| 32 | 500867 | Pilot Air Jet | 1 | • | |||||||||||
| 33 | 500874 | Clip | 1 | • | |||||||||||
| 34 | 500849 | Plunger Assembly | 1 | • | |||||||||||
| 35 | 500870 | O Ring, Pilot Screw | 1 | • | |||||||||||
| 36 | 500869 | Washer, Pilot Screw | 1 | • | |||||||||||
| 37 | 500862 | Spring, Pilot Screw | 1 | • | |||||||||||
| 38 | 500873 | Cap | 1 | • | |||||||||||
| 39 | 500822/A | Hose Carburetor to Engine | 1 | • | Before Dec 2002 | ||||||||||
| 40 | 143144/2 | Clip Hose | 2 | • | |||||||||||
| 41 | 500821 | Flange | 1 | • | Before Dec 2002 | ||||||||||
| 42 | 521178/A | Flange | 1 | • | After Dec 2002 | ||||||||||
| 43 | 521200/A | O Ring | 1 | • | |||||||||||
| 44 | 500355 | Hex Socket Head Screw M6 x 16 | 2 | • | |||||||||||
| 45 | 144636 | Sealing Washer | 2 | • | |||||||||||
| 46 | 500824/A | Gasket | 1 | • | |||||||||||
| 47 | 500823 | Bellows | 1 | • | |||||||||||
