When ordering parts please quote: Part No. and number required, model, year and country type (Royal Enfield exports the following main country types: Indian, European and USA/Canada). Differences between models are indicated.
The minimum mail order amount ₹4000/$150/€100. If you have any enquiries regarding parts email us.
Cylinder Head - Rocker Assembly
Key No. | Part No. | Description | Qty. | Bullet | Mach 350 | 500 | Lightning | T'bird | Remarks | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
350 | Dlx | Mac | Cam | Elec | 500 | 535 | 535ES | ||||||||
A1 | 140778 | Cylinder Head Assy | 1 | • | • | • | • | • | |||||||
500958 | Cylinder Head Assy (Old oil circuit) | 1 | • | Before June 2002 | |||||||||||
500292/A | Cylinder Head Assy (Old oil circuit) | 1 | • | • | For Mach, After June 2002 | ||||||||||
144500 | Cylinder Head Assy | 1 | • | • | • | • | • | ||||||||
A2 | 141207 | Decompressor Assy | 1 | • | • | • | • | • | • | • | |||||
560136 | Decompressor Assy | 1 | • | • | |||||||||||
1 | 111178 | Cylinder head with fixed fittings | 1 | • | • | • | • | • | |||||||
500301 | Cylinder head with fixed fittings (Old oil circuit) | 1 | • | Before June 2002 | |||||||||||
500291/A | Cylinder head with fixed fittings (New oil circuit) | 1 | • | • | For Mach, After June 2002 | ||||||||||
144159 | Cylinder head with fixed fittings | 1 | • | • | • | • | |||||||||
2 | 144773 | Valve seat insert - Inlet | 1 | • | • | • | • | • | |||||||
500302 | Valve seat insert - Inlet | 1 | • | • | |||||||||||
144775 | Valve seat insert - Inlet | 1 | • | • | • | • | |||||||||
3 | 144774 | Valve seat insert - Exhaust | 1 | • | • | • | • | • | |||||||
500303 | Valve seat insert - Exhaust | 1 | • | • | |||||||||||
144776 | Valve seat insert - Exhaust | 1 | • | • | • | • | |||||||||
4 | 140008 | Stud - Rocker bearing | 4 | • | • | • | • | • | • | • | • | • | |||
5 | 140007 | Stud - short - Rocker box | 6 | • | • | • | • | • | • | • | • | • | |||
6 | 140566 | Stud - long - Rocker box | 2 | • | • | • | • | • | • | • | • | • | |||
7 | 143285 | Stud - Carburetor | 2 | • | • | • | • | • | • | • | • | • | |||
8 | 144600 | Washer | 2 | • | • | • | • | • | • | • | • | • | |||
9 | 140079 | Nut - Carburetor Stud | 2 | • | • | • | • | • | • | • | • | • | |||
10 | 144836/C | Valve Guide - Standard | 2 | • | • | • | • | • | • | • | • | • | |||
500304 | Valve Guide - Standard | 2 | • | • | |||||||||||
140925 | Valve Guide 0.003" Oversize | 2 | • | • | • | • | • | • | • | • | • | ||||
144477 | Valve Guide 0.005" Oversize | 2 | • | • | • | • | • | • | • | • | • | ||||
11 | 144449 | Valve Exhaust | 1 | • | • | • | • | • | |||||||
500325 | Valve Exhaust | 1 | • | • | |||||||||||
144498 | Valve Exhaust | 1 | • | • | • | • | |||||||||
12 | 500322 | Seal, Valve Stem | 2 | • | • | ||||||||||
13 | 140001 | Collar - Valve Spring Bottom | 2 | • | • | • | • | • | • | • | • | • | |||
500347 | Seat, Spring | 2 | • | • | |||||||||||
14 | 140004 | Valve spring outer | 2 | • | • | • | • | • | |||||||
500309 | Valve spring | 2 | • | • | |||||||||||
142202 | Valve spring outer | 2 | • | • | • | • | |||||||||
15 | 140003 | Valve spring inner | 2 | • | • | • | • | • | |||||||
142201 | Valve spring inner | 2 | • | • | • | • | |||||||||
16 | 144443 | Collar - Valve spring top | 2 | • | • | • | • | • | • | • | • | • | |||
500352 | Retainer, Valve spring | 2 | • | • | |||||||||||
17 | 140005 | Split Collar | 4 | • | • | • | • | • | • | • | • | • | |||
500307 | Split Collar | 4 | • | • | |||||||||||
18 | 144448 | Valve Inlet | 1 | • | • | • | • | • | |||||||
500324 | Valve Inlet | 1 | • | • | |||||||||||
144499 | Valve Inlet | 1 | • | • | • | • | |||||||||
19 | 140006 | Valve stem cap | 2 | • | • | • | • | • | • | • | • | • | |||
20 | 110081 | Nut, Cylinder head (Inches) | 1 | Before June 2002 | |||||||||||
145106/A | Nut, Cylinder head (Metric) | 1 | • | • | • | • | • | After June 2002 | |||||||
500320 | Nut, Cylinder head | 6 | • | • | |||||||||||
142203 | Nut, Cylinder head (Inches) | 4 | • | • | • | • | Before July 2002 | ||||||||
145107/A | Nut, Cylinder head (Metric) | 4 | • | • | • | • | After June 2002 | ||||||||
21 | 140144 | Nut, Cylinder head stud (Inches) | 2 | • | • | • | • | • | • | • | • | • | Before July 2002 | ||
145112/A | Nut, Cylinder head stud (Metric) | 2 | • | • | • | • | • | • | • | • | • | After July 2002 | |||
22 | 144600 | Washer | 2 | • | • | • | • | • | • | • | • | • | |||
23 | 140099 | Decompressor valve | 1 | • | • | • | • | • | • | • | • | • | |||
24 | 140097 | Washer | 1 | • | • | • | • | • | • | • | • | • | |||
25 | 140098 | Washer | 1 | • | • | • | • | • | • | • | • | • | |||
26 | 140867 | Decompressor body | 1 | • | • | • | • | • | • | • | • | • | |||
27 | 140100 | Spring, Decompressor valve | 1 | • | • | • | • | • | • | • | • | • | |||
28 | 140101 | Spring Cap | 1 | • | • | • | • | • | • | • | • | • | |||
29 | 110320 | Split pin | 1 | • | • | • | • | • | • | • | • | • | |||
30 | 140103 | Cable block - Decompressor | 1 | • | • | • | • | • | • | • | • | • | |||
31 | 143323 | Cable complete, Decompressor | 1 | • | • | • | • | • | |||||||
500506 | Cable complete, Decompressor | 1 | • | ||||||||||||
170292 | Cable complete, Decompressor | 1 | • | • | • | ||||||||||
560125/A | Cable complete, Decompressor | 1 | • | ||||||||||||
521010 | Cable complete, Decompressor | 1 | • | ||||||||||||
32 | 140936 | Washer | 1 | • | • | • | • | • | • | • | • | • | |||
33 | 140168 | Washer | 4 | • | • | • | • | • | • | • | • | • | |||
500321 | Washer | 6 | • | • | |||||||||||
34 | 144440 | Stud, Ground | 4 | • | • | • | • | • | • | • | • | • | |||
35 | 500319 | Stud, Exhaust | 2 | • | • | ||||||||||
36 | 500356 | Damper Pad Inserts | 14 | • | • | ||||||||||
37 | 500357/C | Deflector Plate | 1 | • | • |

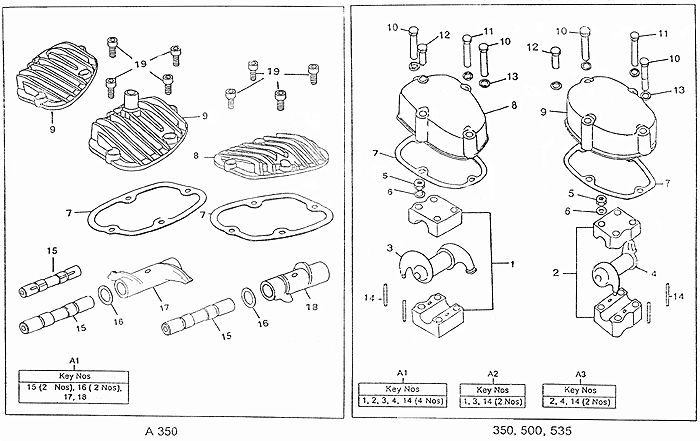

Key No. | Part No. | Description | Qty. | Bullet | Mach 350 | 500 | Lightning | T'bird | Remarks | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
350 | Dlx | Mac | Cam | Elec | 500 | 535 | 535ES | ||||||||
A1 | 141645 | Rocker assy kit | 1 | • | • | • | • | • | • | • | |||||
597067 | Rocker assy kit | 1 | • | • | |||||||||||
A2 | 141647 | Rocker assy, Exhaust | 1 | • | • | • | • | • | • | • | |||||
A3 | 141646 | Rocker assy, Inlet | 1 | • | • | • | • | • | • | • | |||||
1 | 140086 | Rocker bearing set, Exhaust | 1 | • | • | • | • | • | • | • | |||||
144437 | Rocker bearing set, Exhaust | 1 | • | • | |||||||||||
2 | 140084 | Rocker bearing set, Inlet | 1 | • | • | • | • | • | • | • | |||||
144436 | Rocker bearing set, Inlet | 1 | • | • | |||||||||||
3 | 140089 | Rocker Arm, Exhaust | 1 | • | • | • | • | • | • | • | |||||
144444 | Rocker Arm, Exhaust | 1 | • | • | |||||||||||
4 | 140088 | Rocker Arm, Inlet | 1 | • | • | • | • | • | • | • | |||||
144445 | Rocker Arm, Inlet | 1 | • | • | |||||||||||
5 | 140056 | Nut | 8 | • | • | • | • | • | • | • | • | • | |||
6 | 140090 | Washer | 8 | • | • | • | • | • | • | • | • | • | |||
7 | 144620 | Gasket, Rocker cover | 2 | • | • | • | • | • | • | • | • | • | |||
500318 | Gasket, Rocker cover | 2 | • | • | |||||||||||
8 | 140568 | Rocker cover, Exhaust | 1 | • | • | • | • | • | • | • | • | • | |||
500317 | Rocker cover, Exhaust | 1 | • | • | |||||||||||
9 | 140567 | Rocker cover, Inlet | 1 | • | • | • | • | • | • | • | • | • | |||
500316 | Rocker cover, Inlet (Old oil circuit) | 1 | • | Before July 2002 | |||||||||||
500167/A | Rocker cover, Inlet (new oil circuit) | 1 | • | • | For Mach, After July 2002 | ||||||||||
10 | 140133 | Nut long Tubular | 4 | • | • | • | • | • | • | • | • | • | |||
11 | 140134 | Nut Medium Tubular | 2 | • | • | • | • | • | • | • | • | • | |||
12 | 140569 | Nut short Tubular | 2 | • | • | • | • | • | • | • | • | • | |||
13 | 140143 | Washer | 8 | • | • | • | • | • | • | • | • | • | |||
14 | 144441 | Dowel pin | 4 | • | • | • | • | • | • | • | • | • | |||
15 | 500315/C | Rocker Spindle (old oil circuit) | 2 | • | Before July 2002 | ||||||||||
500166/A | Rocker Spindle (new oil circuit) | 2 | • | • | For Mach, After July 2002 | ||||||||||
16 | 500326 | Washer, Rocker Thrust | 2 | • | • | ||||||||||
17 | 500313 | Rocker, Inlet | 1 | • | • | ||||||||||
18 | 500314 | Rocker, Exhaust | 1 | • | • | ||||||||||
19 | 500355 | Screw, Rocker cover | 8 | • | • |
